A generator interlock kit is essential for safely connecting a home generator to your main electrical panel, preventing back-feed and ensuring safe operation. The best overall pick is the Generator Interlock Kit for Square D Homeline Breaker, known for its reliable fit and ease of installation. The Generator Interlock Kit for Eaton Cutler Hammer CH Series stands out for its compatibility with larger panels, while the Joinfworld Generator Interlock Kit offers a budget-friendly option that still meets safety standards. Buyers face tradeoffs between universal compatibility, ease of installation, and cost. Continue reading for a detailed breakdown of each option to find the best fit for your setup.
Get ready for Prime Big Deal Days — try Prime free
Exclusive member deals on October 6–7, plus fast free delivery. Cancel anytime.
Start your free trialAs an affiliate, we earn on qualifying purchases.
Complete the kit
Key Takeaways
- Universal compatibility varies widely; some kits fit multiple panel brands, while others are brand-specific.
- Ease of installation is a key factor; kits with clear instructions and straightforward mounting save time and reduce errors.
- Price differences often reflect build quality and compatibility scope—more expensive options tend to be more versatile and durable.
- Not all kits are suitable for all panel sizes; verifying your panel’s specifications is critical before purchase.
- Safety features, such as fail-safe mechanisms, are more common in premium models, offering peace of mind during operation.
| Generator Interlock Kit for Square D Homeline Breaker |  | Best Overall for Square D Homeline Panels | Compatibility: Square D Homeline Meter Main 150 or 200 Amp Breaker | Material: Stainless steel | Includes: Interlock plates, screws, labels, retainer straps, drill bit, installation guide | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit for Eaton Cutler Hammer CH Series 150 & 200 Amp Panel |  | Best for Eaton CH Series Panels with Depressed Main Breakers | Compatible Models: CH series 150 & 200 amp panels with TAN breakers | Main & Branch Breaker Space: 1.5 inches between main and branch breakers | Includes: Interlocking Plate, Shoulder Screws, Hex Nuts, Drill Bit, Labels, Zip Ties, Instructions | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit Compatible with Square D QO and Homeline 150/200 Amp Panels |  | Best for Square D QO and Homeline Panels | Compatible Models: Square D QO, Homeline 150/200 amp panels | Spacing: 1 3/8 inches | Package Contents: Interlock plate, shoulder screws, hex nuts, labels, zip ties, instruction bulletin, drill bit | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit Compatible with Eaton or Cutler Hammer |  | Best for Eaton and Cutler Hammer Panels with Vertical-Throw Breakers | Compatible models: Eaton / Cutler Hammer | Spacing between breakers: 2 1/4 Inch | Includes: Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit Compatible with Siemens or Murray 150 & 200 Amp Panels |  | Best for Siemens and Murray Panels | Compatible Models: Siemens or Murray 150 & 200 amp panels | Spacing between breakers: 7/8 – 1 1/4 inches | Material: Aluminum alloy | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit for Eaton Cutler Hammer BR Series 150 & 200 Amp Panels |  | Best Overall for Versatile Compatibility and Durability | Compatible Models: Eaton/Cutler Hammer BR Series (150 & 200 Amp), CH Series (with Plug-in Neutral) | Spacing: 1 1/4 – 1 7/16 inches | Material: Aluminum alloy with anodized surface finish | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit for Eaton Cutler Hammer BR Series 100 & 125 Amp Panels |  | Best for Small to Medium Panel Sizes with Easy Installation | Compatible Models: Eaton BR Series 100 & 125 Amp panels | Main and Branch Breaker Position: Single handle horizontal throw | Includes: Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit Compatible with Eaton Cutler-Hammer |  | Best for Safe Backfeeding with Easy-to-Use Kit | Compatibility: Eaton Cutler-Hammer 100 & 125 Amp panels | Includes: Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties | Purpose: Prevents simultaneous utility and generator power | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit for GE 150 & 200 Amp Panels, 1 1/4 Inch Spacing |  | Best for GE Panel Compatibility and Code Compliance | Compatibility: GE 150 & 200 Amp Panels | Spacing: 1 1/4 inches | Includes: Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit Compatible with ITE, Gould, Murray, Siemens, and Thomas and Betts, 150 or 200 amp panels, 1 1/4 Inch Spacing |  | Best for Multi-Brand Compatibility and Ease of Installation | Compatible Models: ITE, Gould, Murray, Siemens, Thomas and Betts | Panel Amp Rating: 150 or 200 amp | Spacing: 1 1/4 inch | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit for Eaton Cutler Hammer BR Series 150 & 200 Amp Panels |  | Best Overall for Eaton/Cutler Hammer BR Series Panels | Compatibility: Eaton/Cutler Hammer BR Series, BR series with plug-in neutral, CH-series with plug-in neutral | Main Breaker Size: 150 & 200 amp | Installation: Easy to connect, includes all necessary components | VIEW ON AMAZON | See Our Full Breakdown |
| Generator Interlock Kit for Siemens and Murray Panels |  | Best for Compatibility with Siemens and Murray Panels | VIEW ON AMAZON | See Our Full Breakdown | |||
| Joinfworld Generator Interlock Kit Compatible with Eaton Cutler Hammer 100A and 125A BR Series Panels |  | Best for Smaller Eaton Panels and Complete Kit | Compatibility: Eaton Cutler Hammer 100A and 125A BR Series panels | Includes: Interlock plates, labels, drill bit, screws, nuts, zip ties, instructions | Material: Steel with PVD titanium plating | VIEW ON AMAZON | See Our Full Breakdown |
| generator interlock kit | Includes | Compatible Models |
|---|---|---|
| Generator Interlock Kit for Sq | Interlock plates, screws, labels, retainer straps, drill bit, installation guide | — |
| Generator Interlock Kit for Ea | Interlocking Plate, Shoulder Screws, Hex Nuts, Drill Bit, Labels, Zip Ties, Instructions | CH series 150 & 200 amp panels with TAN breakers |
| Generator Interlock Kit Compat | — | Square D QO, Homeline 150/200 amp panels |
| Generator Interlock Kit Compat | Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties | Eaton / Cutler Hammer |
| Generator Interlock Kit Compat | — | Siemens or Murray 150 & 200 amp panels |
| Generator Interlock Kit for Ea | — | Eaton/Cutler Hammer BR Series (150 & 200 Amp), CH Series (with Plug-in Neutral) |
| Generator Interlock Kit for Ea | Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions | Eaton BR Series 100 & 125 Amp panels |
| Generator Interlock Kit Compat | Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties | — |
| Generator Interlock Kit for GE | Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions | — |
| Generator Interlock Kit Compat | — | ITE, Gould, Murray, Siemens, Thomas and Betts |
| Generator Interlock Kit for Ea | — | — |
| Generator Interlock Kit for Si | — | — |
| Joinfworld Generator Interlock | Interlock plates, labels, drill bit, screws, nuts, zip ties, instructions | — |
More Details on Our Top Picks
Generator Interlock Kit for Square D Homeline Breaker
This kit stands out for its robust stainless steel construction and comprehensive installation accessories, making it ideal for homeowners comfortable with electrical work who want a reliable, non-electronic interlock solution. Compared with the Generator Interlock Kit for Eaton Cutler Hammer CH Series, this option offers better durability and compatibility with a common panel type, though it lacks automatic features. Its simple mechanical design means no electronic components to fail, but it requires some electrical knowledge for proper installation. The included drill bit and labels streamline setup, and its durable stainless steel ensures long-term performance. However, it is limited to specific breaker models, which could restrict flexibility for those with different panels.
Pros:- Durable stainless steel construction for long-term reliability
- Includes all necessary installation components, simplifying setup
- Compatible with popular Square D Homeline 150/200 Amp breakers
Cons:- Requires basic electrical knowledge for correct installation
- Limited to specific breaker models, reducing flexibility
Best for: Homeowners with Square D Homeline panels seeking a durable, straightforward interlock kit with reliable mechanical performance.
Not ideal for: Users with different panel brands or those seeking automated or electronic interlock solutions, as this kit is limited to specific models and requires manual installation.
- Compatibility:Square D Homeline Meter Main 150 or 200 Amp Breaker
- Material:Stainless steel
- Includes:Interlock plates, screws, labels, retainer straps, drill bit, installation guide
- Dimensions:11.8 inches x 2 inches
Our verdict“This kit is a solid choice for those with Square D Homeline panels who prioritize durability and straightforward installation over automation.”
Generator Interlock Kit for Eaton Cutler Hammer CH Series 150 & 200 Amp Panel
This kit excels for users with Eaton Cutler Hammer CH series panels, providing a safe, easy way to connect a generator while ensuring the main breaker is off. Compared with the Generator Interlock Kit for Siemens or Murray Panels, it offers a straightforward installation process tailored to panels with depressed main breakers, making it highly compatible for Eaton users. The inclusion of all mounting hardware and detailed instructions reduces installation errors, but it’s limited to panels with specific breaker configurations, which could exclude some Eaton models. Its simple mechanical design avoids electronic failures, yet it demands careful verification of panel compatibility beforehand.
Pros:- Ensures safe operation by preventing simultaneous utility and generator power
- Complete installation kit with hardware and instructions included
- Specifically designed for Eaton CH series panels with depressed main breakers
Cons:- Limited to panels with depressed main breaker areas
- Requires verification of panel model and spacing before purchase
Best for: Eaton CH series panel owners wanting a reliable, easy-to-install interlock solution with safety assurances.
Not ideal for: Users with flat or raised main breaker panels or other brands like Siemens or Murray, as the kit is not compatible with those configurations.
- Compatible Models:CH series 150 & 200 amp panels with TAN breakers
- Main & Branch Breaker Space:1.5 inches between main and branch breakers
- Includes:Interlocking Plate, Shoulder Screws, Hex Nuts, Drill Bit, Labels, Zip Ties, Instructions
Our verdict“Ideal for Eaton CH series panel owners who need a reliable, straightforward interlock without automation features.”
Generator Interlock Kit Compatible with Square D QO and Homeline 150/200 Amp Panels
This option makes a strong case for homeowners with Square D QO or Homeline panels who prefer a simple, manual mechanical interlock. Compared to the Generator Interlock Kit for Siemens or Murray panels, it offers easier installation with a dedicated drill bit, but it requires drilling into the panel, which might be intimidating for some. Its compatibility with popular Square D panels and included instructions streamline the process, yet it’s limited to these specific models and lacks automation features. The sturdy interlock plate and clear labeling promote safe operation, but installation demands some technical skill to avoid damaging the panel or voiding warranties.
Pros:- Compatible with popular Square D panels, ensuring broad applicability
- Includes a drill bit and detailed instructions for easier installation
- Provides safe, reliable power transfer without electronic components
Cons:- Requires drilling into the panel, which some may find daunting
- Limited to specific panel models, restricting flexibility
Best for: Homeowners with Square D QO or Homeline panels who prefer a mechanical solution with clear installation guidance.
Not ideal for: Those with non-Square D panels or who want a fully automatic or electronic interlock system, as this is a manual, drill-based option.
- Compatible Models:Square D QO, Homeline 150/200 amp panels
- Spacing:1 3/8 inches
- Package Contents:Interlock plate, shoulder screws, hex nuts, labels, zip ties, instruction bulletin, drill bit
Our verdict“Best for users with Square D panels seeking a manual, easy-to-install interlock with clear instructions and dependable mechanical safety.”
Generator Interlock Kit Compatible with Eaton or Cutler Hammer
This kit is tailored for Eaton and Cutler Hammer panels featuring vertical-throw main breakers, providing a safe, mechanical means to connect a portable generator. Compared with the Generator Interlock Kit for Siemens or Murray panels, it caters to a different panel style, making it highly suited for specific installations. Its 2 1/4-inch spacing and included hardware facilitate a straightforward installation for those with compatible panels, but it’s essential to verify model and spacing before purchasing. The kit’s design avoids electronic components, reducing failure points, yet it demands basic electrical skills and careful measurement to ensure proper fit.
Pros:- Ensures safe power transfer by preventing utility and generator overlap
- Simple, mechanical design with all necessary hardware included
- Compatible with popular Eaton and Cutler Hammer panels with vertical breakers
Cons:- Requires verification of model and breaker spacing before purchase
- Installation may be challenging for those unfamiliar with electrical measurements
Best for: Homeowners with Eaton or Cutler Hammer panels featuring vertical-throw breakers who want a dependable, manual interlock.
Not ideal for: Users with panels that have horizontal or other breaker configurations, or those seeking automatic interlock systems, as this is a manual, model-specific solution.
- Compatible models:Eaton / Cutler Hammer
- Spacing between breakers:2 1/4 Inch
- Includes:Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties
- Model:TP-CH-5
Our verdict“Suitable for users with Eaton or Cutler Hammer panels with vertical breakers looking for a reliable, manual interlock solution.”
Generator Interlock Kit Compatible with Siemens or Murray 150 & 200 Amp Panels
This kit offers a solid mechanical interlock for Siemens and Murray panels, with the added benefit of aluminum alloy construction for durability. Compared with the Generator Interlock Kit for Square D panels, it provides a different compatibility focus, but installation, which involves drilling, may be daunting for some. Its specific compatibility with Siemens and Murray panels makes it less versatile, but the detailed instructions and included tools help mitigate installation challenges. The aluminum alloy makes it lighter and corrosion-resistant, yet the need for precise drilling and measurement can be a barrier for DIYers without electrical experience.
Pros:- Durable aluminum alloy construction with anodized finish
- Includes comprehensive installation tools and instructions
- Helps ensure safe generator connection and prevents power overlap
Cons:- Requires drilling and technical skill for accurate installation
- Limited to specific panel brands and sizes, not universal
Best for: Owners of Siemens or Murray panels seeking a durable, manual interlock with corrosion resistance and clear installation instructions.
Not ideal for: Panel owners of brands not listed, or those wanting electronic or automatic switching features, as this remains a mechanical solution.
- Compatible Models:Siemens or Murray 150 & 200 amp panels
- Spacing between breakers:7/8 – 1 1/4 inches
- Material:Aluminum alloy
- Included Components:Interlock plate, screws, nuts, labels, drill bit, instructions
- Model:SP-SM200
Our verdict“Best for Siemens or Murray panel owners who prefer a lightweight, corrosion-resistant, manual interlock setup.”
Generator Interlock Kit for Eaton Cutler Hammer BR Series 150 & 200 Amp Panels
This interlock kit stands out for its compatibility with both BR and CH series panels, making it a flexible choice for homeowners with different Eaton panels. Its durable aluminum alloy construction ensures long-term reliability, and the inclusion of installation tools and detailed instructions simplifies setup for those with basic electrical skills. Compared with the smaller 100 & 125 amp kits, this model offers broader application for larger panels, but it involves slightly more complex installation. The anodized finish helps resist corrosion, which is essential for outdoor or humid environments. However, the requirement for some technical knowledge means it’s not ideal for complete beginners, and it’s limited to specific panel sizes, so not suitable for older or other brand panels.
Pros:- Compatible with multiple Eaton/Cutler Hammer panel models
- Durable aluminum alloy construction
- Includes comprehensive installation tools and manual
- Helps prevent accidental power outages during generator use
Cons:- Installation may require some technical skill
- Limited to 150 & 200 Amp panels
- No compatibility with older or other brand panels
Best for: Homeowners with Eaton/Cutler Hammer BR or CH panels needing a durable, versatile interlock solution.
Not ideal for: DIYers with minimal electrical experience or those with non-compatible panel types, especially older models.
- Compatible Models:Eaton/Cutler Hammer BR Series (150 & 200 Amp), CH Series (with Plug-in Neutral)
- Spacing:1 1/4 – 1 7/16 inches
- Material:Aluminum alloy with anodized surface finish
- Included Components:Interlock plate, screws, nuts, labels, zip ties, drill bit, instructions
- Part Number:SP-PN200
- Brand:Spzoce
- Unit Count:1
Our verdict“This kit offers a reliable, versatile choice for those with compatible Eaton panels seeking a long-lasting, comprehensive solution.”

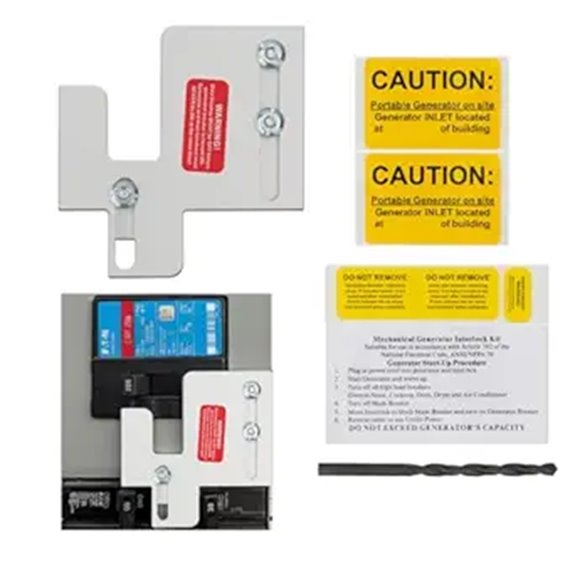

Generator Interlock Kit for Eaton Cutler Hammer BR Series 100 & 125 Amp Panels
This kit is tailored for Eaton BR Series panels of 100 and 125 amps, offering a straightforward way to ensure safe backfeeding. Its single-handle horizontal throw design simplifies operation, and the included components—interlocking plate, screws, drill bit, and labels—make installation accessible for those with basic electrical knowledge. Compared to larger panel kits, this model emphasizes ease of use and quick setup, though it’s limited to smaller panels. Its compatibility with popular Eaton BR panels makes it a practical choice for many homes, but it’s not suitable for larger or different brand panels. The straightforward design minimizes complexity but may lack some of the durability features of premium kits.
Pros:- Ensures safe operation during outages
- Easy to install with all components included
- Compatible with popular Eaton BR Series panels
- Single-handle design simplifies operation
Cons:- Limited to 100 & 125 Amp panels
- Requires basic electrical skills for installation
- Not suitable for other panel brands or larger panels
Best for: Homeowners with 100 or 125 amp Eaton BR panels seeking a simple, reliable interlock kit.
Not ideal for: Individuals with larger panels or different brands, as this kit is specifically designed for smaller Eaton panels.
- Compatible Models:Eaton BR Series 100 & 125 Amp panels
- Main and Branch Breaker Position:Single handle horizontal throw
- Includes:Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions
Our verdict“This kit makes the most sense for those with smaller Eaton BR panels wanting a straightforward, safe interlock solution.”
Generator Interlock Kit Compatible with Eaton Cutler-Hammer
This interlock kit is designed specifically for Eaton Cutler-Hammer 100 and 125 Amp panels, providing a straightforward way to prevent simultaneous utility and generator power. Its comprehensive package includes an interlock plate, screws, drill bit, instructions, labels, and zip ties, making it a convenient option for DIY installations. Compared to more complex systems, this kit emphasizes safety and ease of use, though it requires precise alignment during installation to avoid errors. It’s ideal for users comfortable with basic electrical work but less suited for those wanting a universal solution or with different panel types. Its manual installation process might be challenging for complete beginners, but it offers solid safety features.
Pros:- Compatible with Eaton Cutler-Hammer panels
- Includes a full installation kit with instructions
- Enhances safety during generator use
- Manual process allows precise control
Cons:- Requires careful alignment during installation
- Limited to specific panel types
- Manual installation may be difficult for novices
Best for: Homeowners with compatible Eaton panels who want a safe, straightforward generator interlock kit.
Not ideal for: People with non-compatible panels or minimal electrical experience, due to manual alignment requirements.
- Compatibility:Eaton Cutler-Hammer 100 & 125 Amp panels
- Includes:Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties
- Purpose:Prevents simultaneous utility and generator power
Our verdict“This kit suits those with Eaton panels seeking a simple, secure method to prevent dangerous backfeeding during outages.”
Generator Interlock Kit for GE 150 & 200 Amp Panels, 1 1/4 Inch Spacing
This kit is tailored for GE 150 and 200 Amp panels, providing a reliable solution that ensures safe operation by preventing the main and generator breakers from being active simultaneously. Its comprehensive package includes all necessary components—interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions—making it accessible for those comfortable with basic installation. Compared with Eaton-based kits, this one emphasizes compliance with electrical codes and customer satisfaction, evidenced by high reviews. However, its compatibility is limited to specific GE panels, and proper installation is essential to ensure safety. It’s a good choice for GE panel owners but less suitable for other brands or larger panel sizes.
Pros:- Ensures safe, code-compliant operation
- Includes complete installation components
- Highly rated with positive customer reviews
- Designed specifically for GE panels
Cons:- Limited to GE 150 & 200 Amp panels
- Requires correct installation for safety
- No outdoor or weather-resistant features specified
Best for: GE panel owners seeking a code-compliant, easy-to-install interlock kit with proven reliability.
Not ideal for: Users with non-GE panels or those unfamiliar with precise installation procedures, as improper setup can compromise safety.
- Compatibility:GE 150 & 200 Amp Panels
- Spacing:1 1/4 inches
- Includes:Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions
- Model Number:GIK-GE200
Our verdict“This kit is ideal for GE panel owners wanting a trusted, straightforward safety upgrade for generator connection.”
Generator Interlock Kit Compatible with ITE, Gould, Murray, Siemens, and Thomas and Betts, 150 or 200 amp panels, 1 1/4 Inch Spacing
This interlock kit offers broad compatibility across brands like ITE, Gould, Murray, Siemens, and Thomas and Betts, making it a versatile choice for diverse panels. Its steel construction provides strength, and the included drill bit and straightforward instructions simplify installation—no additional wiring needed. Compared to brand-specific options, this kit’s universal design makes it more flexible but also demands careful measurement and alignment to avoid errors. It’s best suited for users with multiple panels or those who prefer a single solution for different brands, though it’s limited to 150 and 200 amp panels and doesn’t specify weather resistance. Its ease of installation is a strong selling point for DIYers, but precise fitting is essential for safety.
Pros:- Compatible with multiple brands
- Easy installation with included drill bit
- Steel construction for durability
- No additional wiring required
Cons:- Limited to 150 & 200 Amp panels
- Requires careful alignment during installation
- No mention of outdoor weather resistance
Best for: Homeowners or contractors managing multiple panel brands looking for a universal, easy-to-install interlock solution.
Not ideal for: Those with panels outside the specified brands or needing outdoor-rated hardware, as this kit is not weatherproof or brand-exclusive.
- Compatible Models:ITE, Gould, Murray, Siemens, Thomas and Betts
- Panel Amp Rating:150 or 200 amp
- Spacing:1 1/4 inch
- Material:Sturdy steel
- Installation:Easy, no wiring needed
Our verdict“This kit is well-suited for versatile applications across various panel brands, especially for DIYers managing multiple systems.”
Generator Interlock Kit for Eaton Cutler Hammer BR Series 150 & 200 Amp Panels
This interlock kit stands out for its compatibility with a broad range of Eaton/Cutler Hammer BR and CH series panels, offering a safe and cost-effective method for backfeeding your home during outages. Its design ensures that both main and generator breakers cannot operate simultaneously, preventing dangerous backfeed scenarios. Compared with the Joinfworld Kit, it offers easier installation with all components included, though it requires some basic electrical knowledge and is limited to specific panel models. The handle’s single horizontal throw makes operation straightforward, and the spacing between breakers is standard for safety. However, it doesn’t include detailed instructions, so DIY novices might find it challenging. This pick makes the most sense for homeowners with Eaton/Cutler Hammer panels seeking a reliable and straightforward solution.
Pros:- Provides safe and reliable backup power connection
- Easy to install with all components included
- Compatible with multiple Eaton/Cutler Hammer panel models
- Prevents dangerous simultaneous breaker operation
Cons:- Requires basic electrical knowledge for installation
- Limited to specific panel series
Best for: Homeowners with Eaton or Cutler Hammer BR/CH panels who want a proven, easy-to-install interlock kit for backup power.
Not ideal for: People with different panel brands or those without basic electrical skills, as installation could be complex or incompatible.
- Compatibility:Eaton/Cutler Hammer BR Series, BR series with plug-in neutral, CH-series with plug-in neutral
- Main Breaker Size:150 & 200 amp
- Installation:Easy to connect, includes all necessary components
- Handle Type:Single handle horizontal throw
- Spacing:1 1/4 – 1 7/16 inches between main and branch breakers
Our verdict“This is a strong choice for Eaton/Cutler Hammer panel owners needing a reliable, straightforward interlock solution.”
Generator Interlock Kit for Siemens and Murray Panels
This interlock kit is tailored for Siemens and Murray panels, offering a straightforward, safe method for connecting a generator. Compared to the Eaton-specific options, it broadens compatibility but lacks detailed specifications or installation instructions, which could challenge DIY users. Its simplicity is a plus for those familiar with these brands, ensuring safe operation without complex modifications. However, the absence of detailed technical info means buyers need to verify compatibility carefully, and it’s less suited for those with non-listed panels. This option is best for homeowners already using Siemens or Murray panels who prioritize ease of connection with minimal fuss.
Pros:- Compatible with Siemens and Murray panels
- Provides safe generator connection
- Easy to install for experienced DIYers
Cons:- Limited to specific panel brands
- No detailed specifications or instructions provided
Best for: Owners of Siemens or Murray panels seeking a simple, reliable generator interlock solution.
Not ideal for: Users with panels outside these brands or those needing detailed installation guidance, as the lack of specifications may cause uncertainty.
Our verdict“This kit suits those with Siemens or Murray panels who want a hassle-free, safe generator connection method without complex features.”
Joinfworld Generator Interlock Kit Compatible with Eaton Cutler Hammer 100A and 125A BR Series Panels
The Joinfworld kit is designed specifically for Eaton Cutler Hammer 100A and 125A BR series panels, making it ideal for homes with these smaller service panels. It includes all necessary accessories—interlock plates, labels, drill bit, screws, and instructions—making it a comprehensive package. Compared with the B09PBKT7ZQ option, it requires manual drilling and panel removal, which adds complexity but allows for a secure, custom fit. Its steel construction with titanium plating enhances durability, but the installation process might be daunting for novices. The need for panel removal and drilling limits its appeal for those uncomfortable with DIY electrical work. This pick is best for technically inclined homeowners with smaller Eaton panels needing a complete, durable kit.
Pros:- Compatible with Eaton 100A and 125A BR panels
- Includes all necessary installation accessories
- Steel with PVD titanium plating for durability
- Complete kit with labels and drill bit
Cons:- Requires drilling and panel removal for installation
- Installation complexity may challenge novices
Best for: Homeowners with Eaton 100A or 125A BR panels who are comfortable with drilling and panel removal for a secure installation.
Not ideal for: Those with larger panels or limited DIY experience, as the installation is more involved and requires panel work.
- Compatibility:Eaton Cutler Hammer 100A and 125A BR Series panels
- Includes:Interlock plates, labels, drill bit, screws, nuts, zip ties, instructions
- Material:Steel with PVD titanium plating
- Installation:Requires drilling and panel cover removal
Our verdict“This kit suits skilled DIYers seeking a durable, all-in-one solution for smaller Eaton panels, despite the installation effort required.”
How We Picked
These generator interlock kits were evaluated based on compatibility with common electrical panels, ease of installation, build quality, and safety features. We prioritized products that fit a broad range of panels and provided clear instructions, reducing the risk of incorrect installation. Cost was also considered, balancing affordability with durability and versatility. The ranking reflects these factors, with the most adaptable and user-friendly options placed higher, ensuring both safety and convenience for a variety of users.| generator interlock kit | Includes |
|---|---|
| Generator Interlock Kit for Sq | Interlock plates, screws, labels, retainer straps, drill bit, installation guide |
| Generator Interlock Kit for Ea | Interlocking Plate, Shoulder Screws, Hex Nuts, Drill Bit, Labels, Zip Ties, Instructions |
| Generator Interlock Kit Compat | — |
| Generator Interlock Kit Compat | Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties |
| Generator Interlock Kit Compat | — |
| Generator Interlock Kit for Ea | — |
| Generator Interlock Kit for Ea | Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions |
| Generator Interlock Kit Compat | Interlock plate, screws, drill bit, instruction bulletin, labels, zip ties |
| Generator Interlock Kit for GE | Interlocking plate, shoulder screws, hex nuts, drill bit, labels, zip ties, instructions |
| Generator Interlock Kit Compat | — |
| Generator Interlock Kit for Ea | — |
| Generator Interlock Kit for Si | — |
| Joinfworld Generator Interlock | Interlock plates, labels, drill bit, screws, nuts, zip ties, instructions |
Factors to Consider When Choosing Generator Interlock Kit
Choosing the right generator interlock kit involves understanding your panel type, installation skill level, and safety needs. Beyond compatibility, it’s important to consider ease of installation and durability. A well-selected kit can prevent dangerous back-feeding and ensure smooth operation during power outages. Here are key factors to keep in mind when selecting the best interlock kit for your setup.Panel Compatibility
Not all interlock kits fit every panel. Many are designed for specific brands like Square D, Eaton, or Siemens, and even within those brands, certain models have unique configurations. Always verify your panel’s make and model before purchasing. Universal kits are available but may require additional modifications, which could complicate installation. Ensuring compatibility upfront prevents costly returns and installation errors.
Ease of Installation
An interlock kit should simplify switching between utility power and generator power without requiring complex wiring. Look for kits with clear instructions, minimal mounting hardware, and straightforward operation. Kits with adjustable features often accommodate different panel sizes and configurations, making setup smoother. DIYers should prioritize options with detailed guidance to avoid safety hazards caused by improper installation.
Build Quality and Durability
Materials matter: sturdy metal components last longer and withstand environmental factors better than plastic alternatives. Cheaper kits might save money upfront but could wear out or break over time, especially if exposed to moisture or frequent use. Investing in a higher-quality kit typically pays off by maintaining safety and functionality during power emergencies.
Safety Features
Safety is non-negotiable with generator interlock kits. Look for designs that prevent simultaneous connection of utility and generator power, reducing the risk of back-feed, which can endanger utility workers. Some premium kits include fail-safe mechanisms or visual indicators that confirm proper installation. Prioritizing these features adds an extra layer of security during outages.
Cost and Value
While budget options can be tempting, they often come with compromises in compatibility or durability. Conversely, premium kits tend to offer better safety features and broader compatibility but at a higher price. Balance your budget with your safety and performance needs. Investing a bit more may save money and hassle in the long run by ensuring reliable, safe operation during emergencies.
Frequently Asked Questions
Can I install a generator interlock kit myself?
Installation of a generator interlock kit is feasible for individuals with basic electrical skills, but it involves working with live panels, which can be dangerous. If you are comfortable with electrical work and follow the manufacturer’s instructions carefully, you can attempt installation. However, hiring a licensed electrician is recommended to ensure safety, proper compliance with local codes, and peace of mind during operation.
Will a universal interlock kit fit my specific panel?
Universal interlock kits are designed to accommodate multiple panel types, but compatibility isn’t guaranteed for all models. It’s essential to verify your panel’s brand and model number against the product specifications. When in doubt, choosing a brand-specific kit can reduce fitment issues, providing a more secure and reliable installation.
Are interlock kits compliant with local electrical codes?
Most certified interlock kits meet standard safety requirements, but code compliance can vary by location. Checking with your local electrical inspector or authority ensures that the kit you select aligns with regional regulations. Proper installation by a licensed electrician can also help maintain compliance and safety standards.
How long does a typical generator interlock kit last?
With proper installation and maintenance, a good-quality interlock kit can last for many years, often over a decade. Factors that influence longevity include environmental exposure, frequency of use, and material quality. Regular inspections and occasional testing ensure the kit remains in safe working order, providing reliable protection during power outages.
Is a generator interlock kit worth the investment?
Yes, a generator interlock kit is a worthwhile investment for anyone relying on a backup generator. It significantly improves safety by preventing dangerous back-feed situations and simplifies switching between power sources. While it adds an upfront cost, the peace of mind and enhanced safety during outages make it a prudent addition to your home electrical system.
Conclusion
The best overall choice for most users is the Generator Interlock Kit for Square D Homeline Breaker, offering broad compatibility and straightforward installation. Budget-conscious buyers will appreciate the Joinfworld Generator Interlock Kit, which combines safety with affordability. Those seeking premium features and maximum safety should consider models with advanced safety mechanisms, such as the Generator Interlock Kit for Eaton or Siemens panels. Beginners or DIYers should prioritize kits with clear instructions and simple mounting options, while professional installers might focus on compatibility and build quality. Ultimately, selecting the right kit depends on your panel type, budget, and safety priorities, ensuring a secure connection during power outages.
NFL season / tailgating Picks
team gear
As an affiliate, we earn on qualifying purchases.
